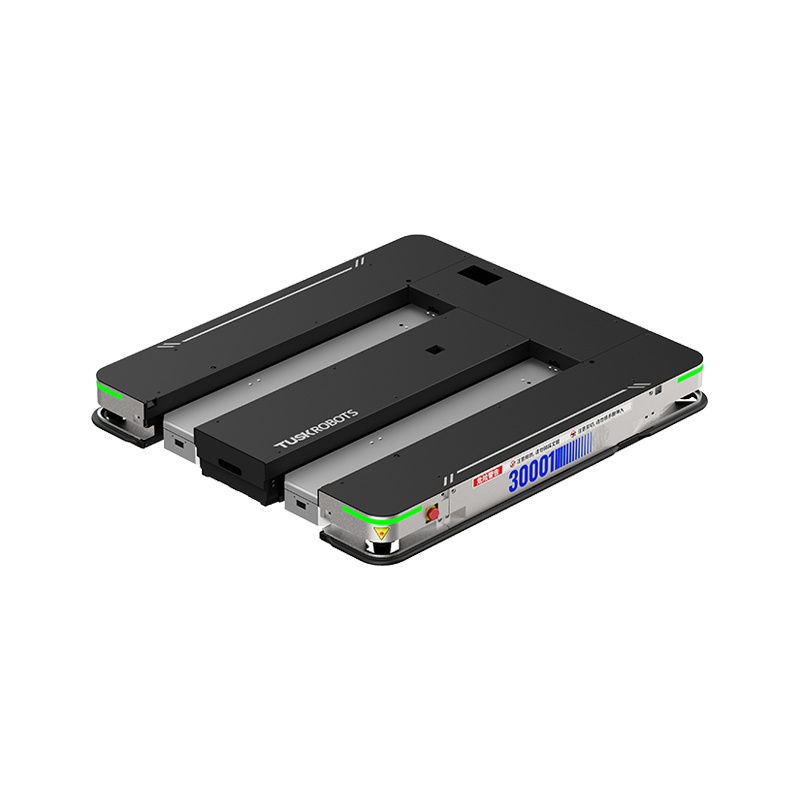

E10(Titan)

Heavy Load Handling Capable of handling loads up to 1.5 tons.
High-level Safety 360°obstacle avoidance detection,cargo detection, etc.

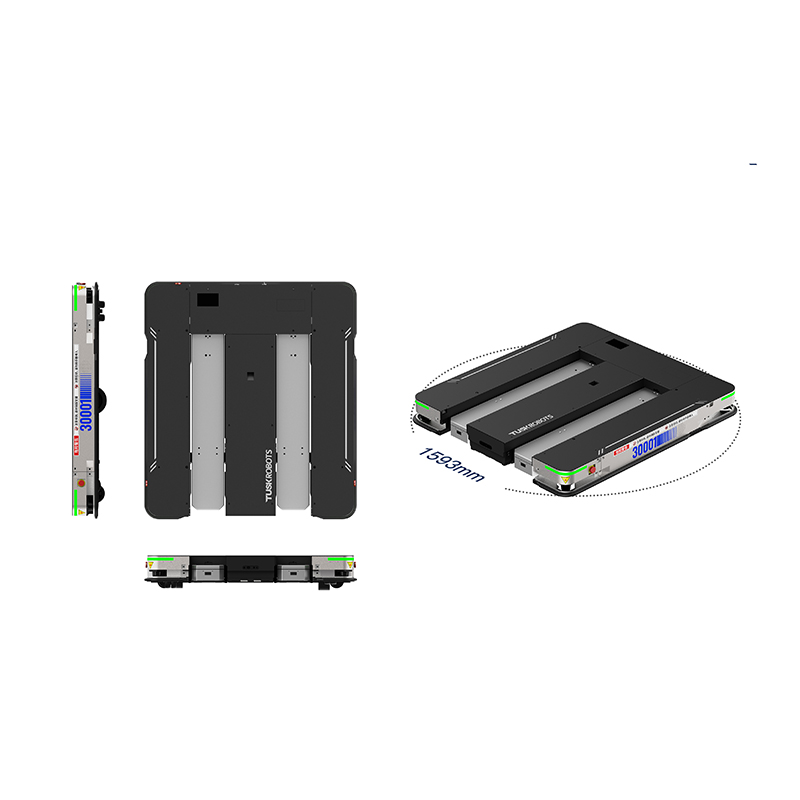

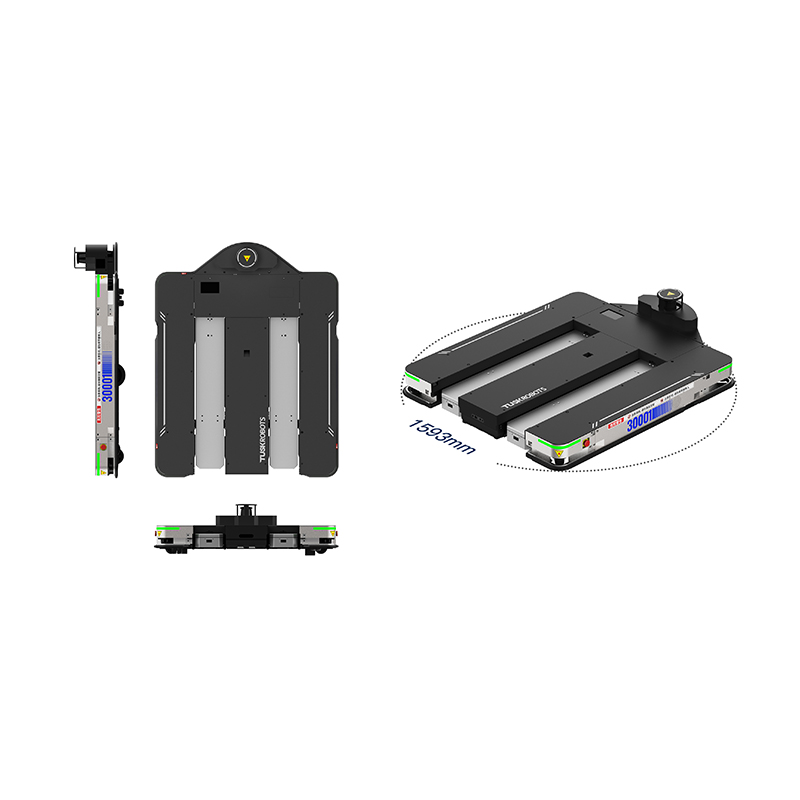

Narrow Aisle Passable APR can spin around.

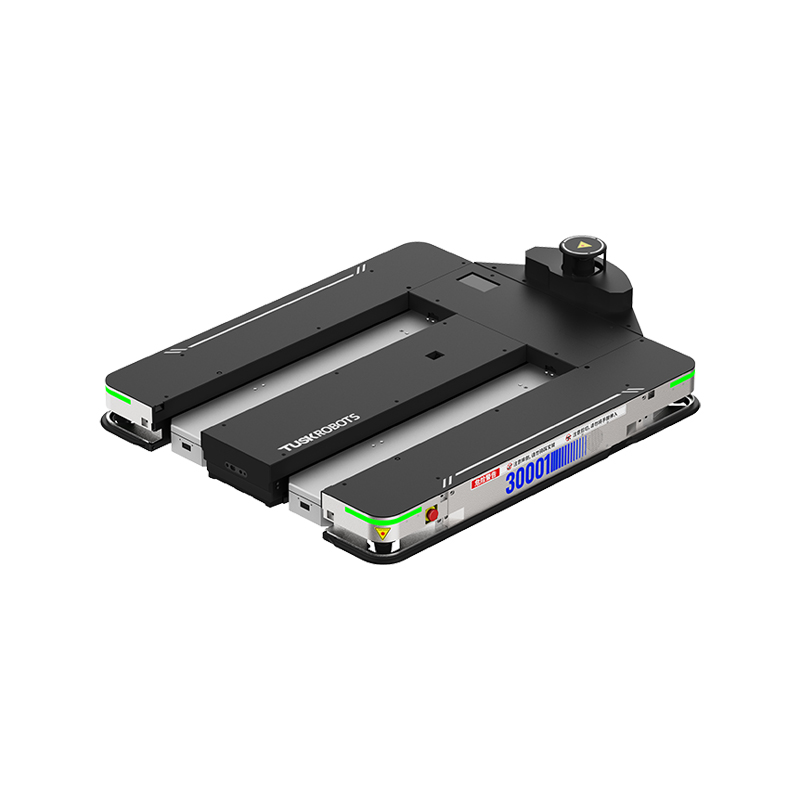

Project	Specifications	E10(Titan)	E10-SLAM(Titan)
Basic Parameters	Size(mm)	1233x1102x170 (Include the protection strip)	1399x1102x170 (SLAM component can be elevated)
	Maximum Lifting Weight (kg)	Rated 1200KG, Max 1500KG
	Self-Weight (kg)	310	320
	Fork Height (mm)	90(7mm downward floating height with loading)
	Fork Stretch Out Max Limit (mm)	1400
	Maximum Lifting Height (mm)	≤330
	Display Screen	5 inches
	Telecommunication Modes	Default WIFI version: Support dual-band 2.4G/5G, IEEE802.11b/g/n (-5G version support 5G communication)
Safety Protection	Obstacle Avoidance Protection	Front double laser sensors + Rear double laser sensors
	Detection Distance of Front Laser(m)	0-3
	Mechanical Protection	Emergency stop button, Reset button, A protection strip around the whole vehicle body
	Caution Function	With voice and photoelectric alarm functions
	Fork tip protection	Photoelectric sensor detection distance≤100mm, collision switch
Movement Capability	Navigation Mode	DM code	SLAM + DM code Dual Navigation
	Maximum Speed (Full Load/Empty Lood)(m/s)	1.5/1.2
	Rated Acceleration(m/s²)	1
	Stop Accuracy	±5mm /±1°	±10mm /±2°
	Movement Mode	Dual-wheel differential
	Ground Adaptation Gap Slope Step	40mm(Gap)/4°(7%)(Slope)/15mm(Step)
	Maximum Slope when the Fork Extension reach to the Maximum	2°
Lithium Battery Performance	Rated Voltage/Capacity	51.2V/30AH
	Battery Life	The times of fully charging: 1500 times (The battery capacity is guaranted to be more than 70% of the new battery)
	Battery Endurance/Charging Time	≥6H/≤1.5H
	Battery Typo	LFP
Environment	Operating temperature(℃)	0~45
Pallet Requirement	The Width of W1 and W2 (mm)	W1≤190. 700≤W2≤950
	Pallet Length (mm)	≤1400	≤1300
	Pallet Opening Height (mm)	120-130

Links to application examples

Pallet size adaptation

Specifications	Parameters		Types
Inner Width of Slots W1(mm)	W1≤160
Outer Width of Slots W2(mm)	W2≥600
Inner Pallet Height H(mm)	95≤H≤130
Pallet Length L(mm)	≤1400(DM Code Version)	≤1300 (SLAM Version)
