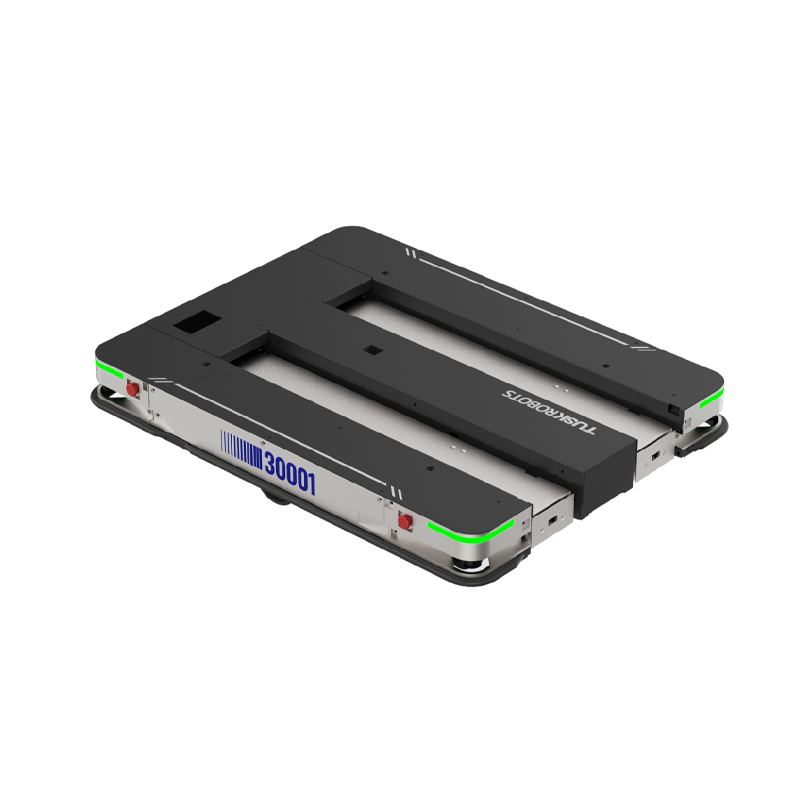

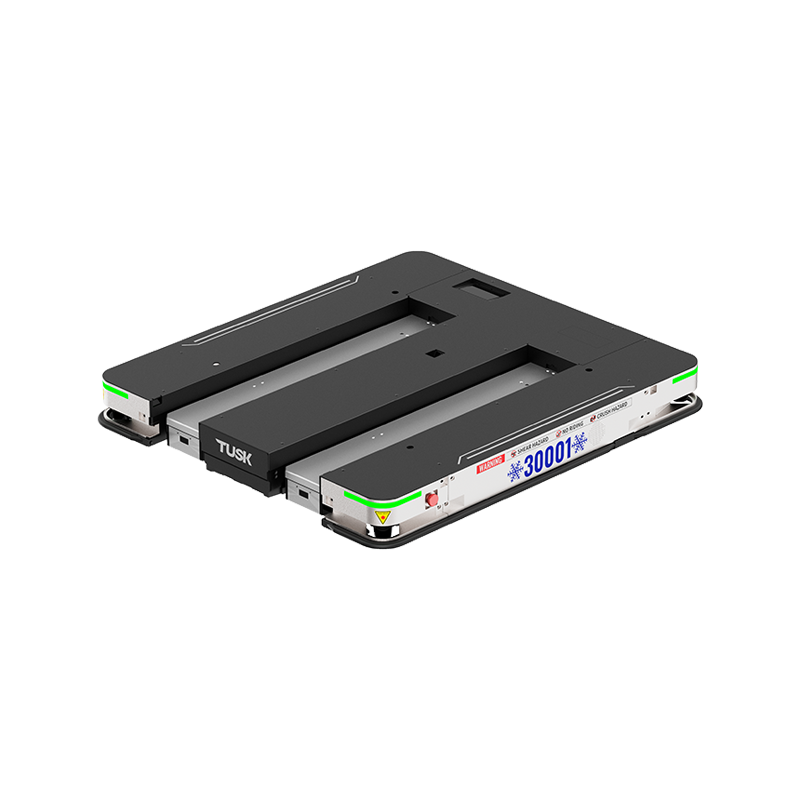

E10

  • Standard Pallet Available for 1000*1200mm plastic pallet handling.
  • Narrow Aisle The minimum width of pallet handling aisle is 1800mm.
  • High-level Safety 360° laser obstacle avoidance detection, cargo detection, etc.
  • Equipment Docking Multi-equipment types of docking support, such as lift, elevator, mechanical arm, etc.

Project

Specifications

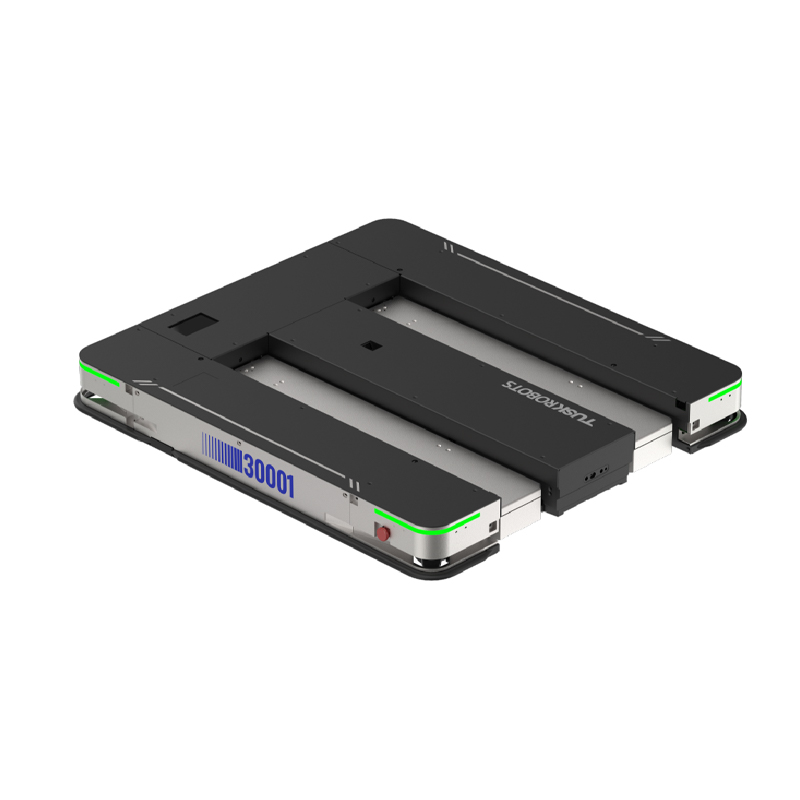

E10

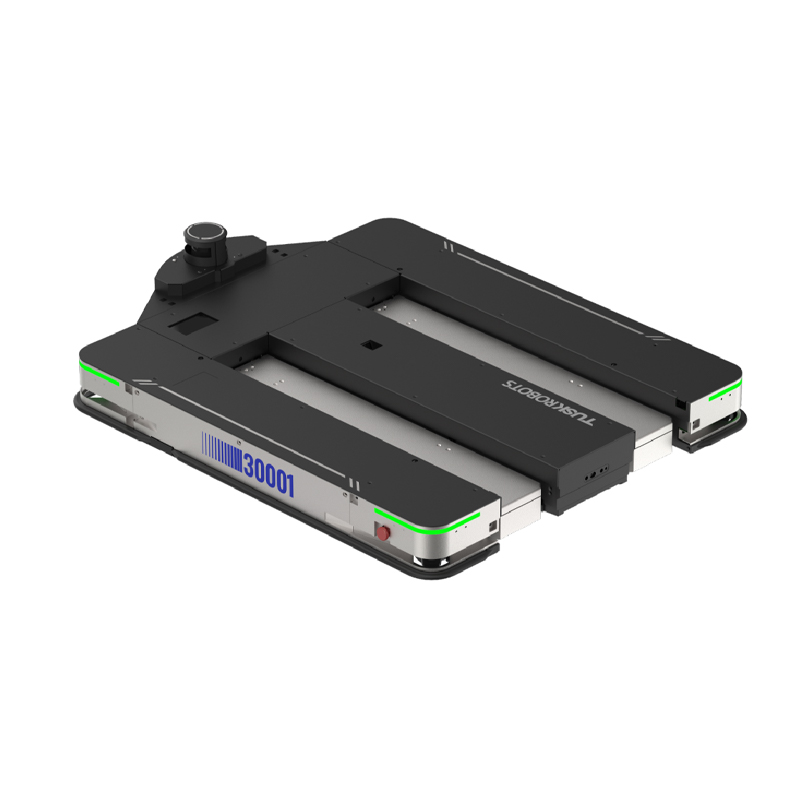

E10-SLAM

Basic Parameters

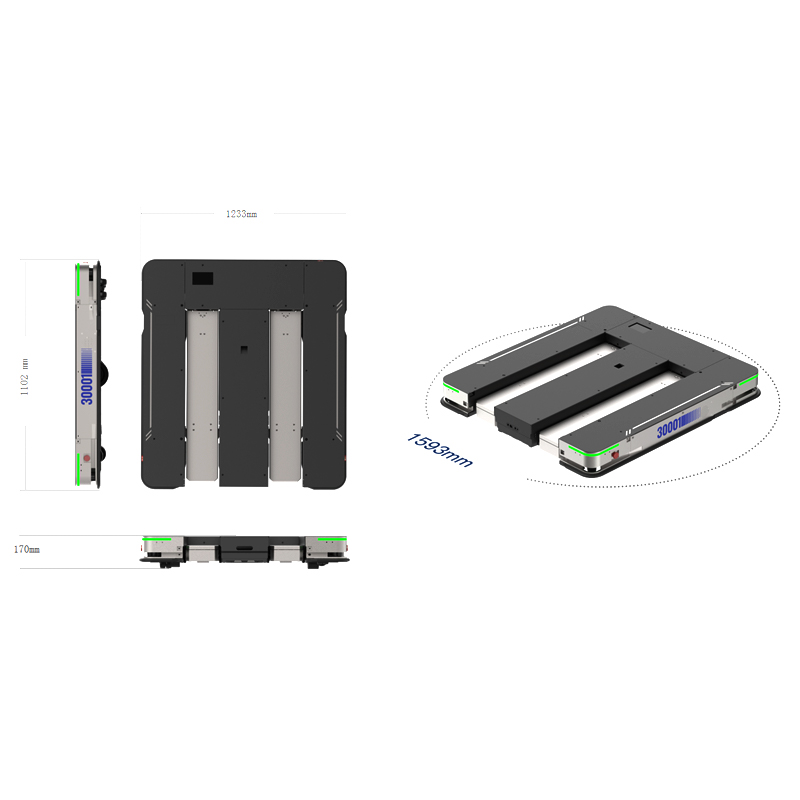

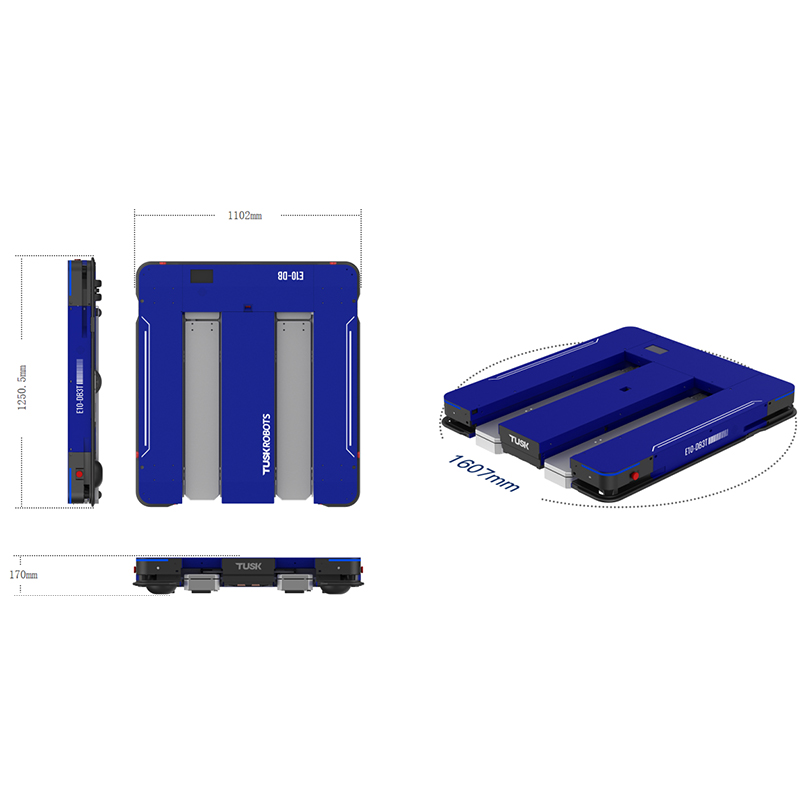

Size(mm)

1233x1102x170

1399x1102x170(SLAM component can be elevated)

Rated Load (kg)

1000

Self-Weight (kg)

310

320

Fork Height (mm)

90(7mm downward floating height with loading)

Fork Stretch Out Max Limit (mm)

1400

Fork Max Lifting Height (mm)

≤330

Display Screen

5 inches

Telecommunication Modes

Default WIFl version: Support dual-band 2.4G/5G, IEEE802.11b/g/n

(-5G version support sG communication)

Safety Protection

Obstacle Avoidance Protection

Front laser sensors + Rear laser sensors,
360° obstacle avoidance detection

Detection Distance of Front Laser(m)

0-3

Mechanical Protection

Emergency stop button, Reset button, A protection strip around the whole vehicle body

Caution Function

with voice and photoelectric alarm functions

Fork tip protection

collision switch

Movement
Capability

Navigation Mode

DM code

SLAM + DM code Dual Navigation

Maximum Speed
(Empty Load/Full Load)(m/s)

2.0/1.5

Rated Acceleration(m/s²)

1

Stop Accuracy

±5mm /±1°

±20mm /±2°

Movement Mode

two-wheel differential

Ground Adaptation Gap Slope Step

40mm(Gap)/4°(7%)(Slope)/15mm(step)

Maximum Slope when the Fork
Extension reach to the Maximum

Lithium Battery

Performance

Rated Voltage/Capacity

51.2V/30AH

Battery Lite

The times of full charging: 1500 times
(The battery capacity is guaranted to be more than 70% of the new battery)

Battery Endurance/Charging Time

≥8H/≤2H

Battery Type

LFP

Environment

Operating temperature(℃)

0~45

Pallet Requirement

The Width of w1 and W2 (mm)

W1≤190,700≤W2≤970

Pallet Length (mm)

≤1400

≤1300

Vertical Entry Clearance(mm)

95-130

Links to application examples

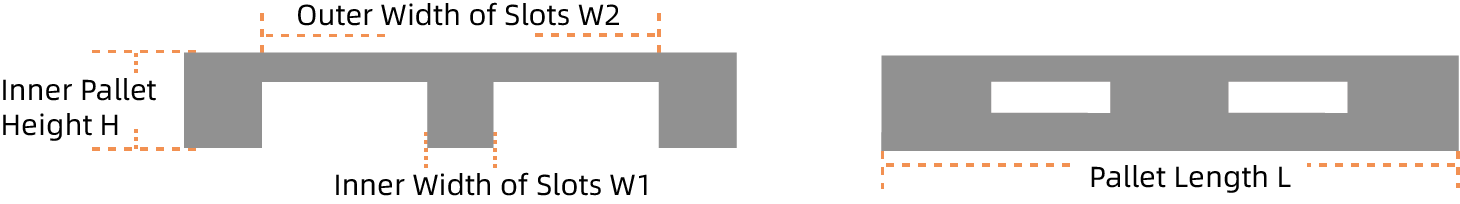

Pallet size adaptation

Specifications
Parameters
Types
Inner Width of
Slots W1(mm)
W1≤160
Outer Width of Slots W2(mm)
W2≥600
Inner Pallet
Height H(mm)
95≤H≤130
Pallet Length
L(mm)
≤1400(DM Code Version)
≤1300 (SLAM Version)

Tuskrobots

As China Industrial Handling Robot manufacturers and Industrial Handling AGV factory, Tuskrobots is committed to empowering intelligent logistics in smart factories, making handling simpler and more efficient.It has launched a globally unique and innovative intelligent robot product that is highly adaptable to international standard pallets for conveying and picking. Tuskrobots always insists on serving customers and pursuing customer value, sparing no effort to improve project delivery and after-sales service capability. We adhere to the customer-oriented concept with real actions, and we also continuously improve ourselves with customer feedback. To match customer usage scenarios and customer requirements, there are a variety of service products of Tuskrobots products and systems for customization or selection in the after-sales stage. Choose the service plan that suits you, we will provide service of high quality.

  • 0+

    R&D Patents

  • 0+

    R&D and Technical
    Staff

  • 0%

    Market Growth Rate

  • 0+

    Global Network
    Coverage

China Source Factory

  • Foshan

  • Foshan

  • Foshan

  • Beijing

  • Hangzhou

  • Shanghai office

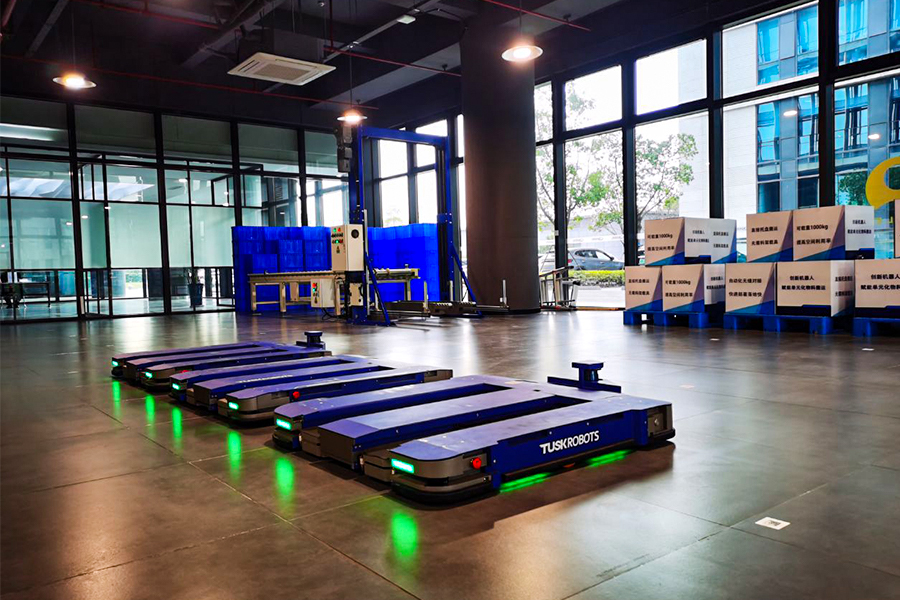

  • Shanghai
